Kenmore 303.147020

51 Parts Available for this Model

It was very easy to find the needed part on the website. It was packaged well and arrived quickly. Perfect!

Jul 21, 2016

[Click Images to Enlarge]

Part Categories for Kenmore 303.147020

Covers | Drums | Filters | Handles | Hardware | Hoses, Valves, and Regulators | Other Parts | Tubing | Water Tanks | Windows

Accessories for All Humidifiers

Accessories | Chemicals | Tubing

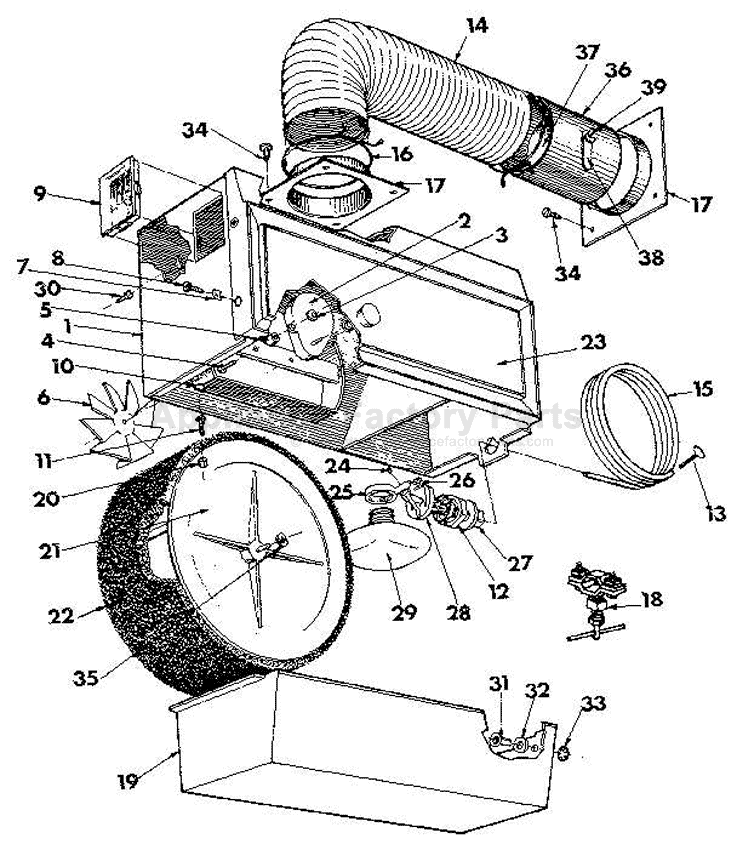

All Parts for Kenmore 303.147020

Covers

Ref.	Image	Part No & Description	Price
23		325204-03 - Front Cover Assembly . View Part Info	$0.00	Not Available

Drums

Ref.	Image	Part No & Description	Price
21		281237-01 - Media Wheel . View Part Info	$0.00	Not Available

Filters

Ref.	Image	Part No & Description	Price
22		qbpLS91 - Foam Humidifier Filter 3/4x View Part Info	$6.52

Handles

Ref.	Image	Part No & Description	Price
38		281278-01 - Handle . View Part Info	$0.00	Not Available

Hardware

Ref.	Image	Part No & Description	Price
3		STD541006 - Hex Nut, 8-pack View Part Info		Not Available
4		030252-04 - Screw. View Part Info	$0.00	Not Available
5		281174-01 - Spacer. View Part Info	$0.00	Not Available
7		030175-02 - Speed Clip. View Part Info	$0.00	Not Available
8		STD510803 - Screw 8 Pack View Part Info	$0.00	Not Available
10		030012-04 - Speed Nut . View Part Info	$0.00	Not Available
11		030226-26 - Screw . View Part Info	$0.00	Not Available
20		030242-01 - Knurled Nut . View Part Info	$0.00	Not Available
30		STD610807 - Screw . View Part Info	$0.00	Not Available
32		030228-13 - Washer . View Part Info	$0.00	Not Available
34		030036-07 - Mounting Screw No. 8x3/8 . View Part Info	$0.00	Not Available
35		030228-11 - Washer . View Part Info	$0.00	Not Available
39		030247-02 - Wing Nut . View Part Info	$0.00	Not Available

Hoses, Valves, and Regulators

Ref.	Image	Part No & Description	Price
NI		35546301 - Float Valve. Sorry This Part Is No Longe View Part Info	$0.00	Not Available
14		281152-01 - Flex Hose . View Part Info	$0.00	Not Available
17		225142-01 - Tubing Flange. View Part Info	$0.00	Not Available
18		STV3 - Saddle Valve, 1/4" Self Tapping Valve View Part Info	$4.52
24		28110101 - Float Button View Part Info		Not Available
28		23099 - Float Assembly With 1/4 Inch Threaded Od View Part Info	$36.30
29		355465-01 - Float . View Part Info	$0.00	Not Available

Other Parts

Ref.	Image	Part No & Description	Price
NI		335160-01 - Damper Assembly (includes Key No. 36-39) View Part Info	$0.00	Not Available
1		281239-04 - Upper Case . View Part Info	$0.00	Not Available
2		281276-01 - Gear Box . View Part Info	$0.00	Not Available
6		281178-01 - Propeller . No Longer Available. View Part Info		Not Available
13		41067501 - Brass Insert. No Longer Available. View Part Info		Not Available
26		28110201 - Pivot Pin . Sorry This Part Is No Longer View Part Info	$0.00	Not Available
27		25514001 - Plastic Compresson Nut View Part Info	$2.99
31		280855-01 - Eyelet . View Part Info	$0.00	Not Available
33		281186-01 - Clip . View Part Info	$0.00	Not Available
37		281277-01 - Butterfly . View Part Info	$0.00	Not Available

Tubing

Ref.	Image	Part No & Description	Price
15		21582703 - Plastic Supply Tubing (1/4" X 10 Ft.) . View Part Info	$0.00	Not Available
16		215810-02 - Clamp . View Part Info	$0.00	Not Available
36		281254-01 - Tube . View Part Info	$0.00	Not Available

Water Tanks

Ref.	Image	Part No & Description	Price
19		28123804 - Reservoir Water. Sorry This Part Is No L View Part Info	$38.58

Windows

Ref.	Image	Part No & Description	Price
9		281246-01 - Inspection Window . View Part Info	$0.00	Not Available

Accessories for all Humidifiers:

Accessories for all Humidifiers:

Ref.	Image	Part No & Description	Price
		AC-912 - Pan Tabets ( 6 Pack) View Part Info	$13.65
		246 - Humidifier Treatment View Part Info	$15.65
		T812 - Cutting Board 8 X12 Inch View Part Info	$4.99

Chemicals for all Humidifiers:

Ref.	Image	Part No & Description	Price
		FSRM6 - Humidafresh Rainforest Mist Water Treatm View Part Info	$11.03
		FSCA6 - Humidafresh Cinnamon Apple Water Treatme View Part Info	$11.15
		FSFV6 - Humidafresh Vanilla Water Treatment View Part Info	$5.13
		AC802 - Humidifier Bacteriostatic Water Treatmen View Part Info	$11.28
		1T-6 - Humdf Water Treatment32 Oz View Part Info	$11.80
		AC816 - Extra Strength Humidifier Cleaner View Part Info	$11.22
		FSOB6 - Humidafresh Ocean Breeze View Part Info	$5.13
		3US-6 - Water Treatment Cleaner View Part Info	$11.22

Tubing for all Humidifiers:

Ref.	Image	Part No & Description	Price
		21581001 - Worm Gear Clamp, 5 5/8 - 6 1/2 View Part Info	$1.99
