Kenmore 758.744800

55 Parts Available for this Model

We have purchased this kind of item in the past and believe there is no other way to do so that is as simple and inexpensive as through Appliance Factory Parts.

Nov 28, 2014

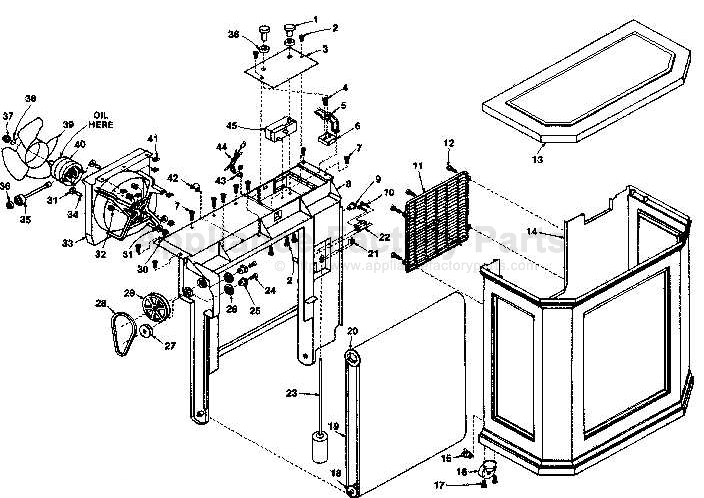

[Click Images to Enlarge]

Part Categories for Kenmore 758.744800

Accessories for All Humidifiers

Accessories | Chemicals | Tubing

All Parts for Kenmore 758.744800

Controls

Ref.	Image	Part No & Description	Price
6		ESK27460 - Switch View Part Info		Not Available
45		ESK13805-02 - Humidistat View Part Info		Not Available

Drive Belts

Ref.	Image	Part No & Description	Price
28		25243 - Drive Belt For Sears View Part Info	$18.45

Frames

Ref.	Image	Part No & Description	Price
8		ESK29639-02 - Frame, Pad. View Part Info	$0.00	Not Available

GE Parts

Ref.	Image	Part No & Description	Price
4		GEHSTD510602 - Screw 6-32x View Part Info	$999,999.99	Not Available

Hardware

Ref.	Part No & Description	Price
2	STD600803 - Screw 8 Pack View Part Info	$0.00	Not Available
7	STD610805 - Screw 8 Pack View Part Info		Not Available
10	ESK21305 - Screw, #4-40 X 5/8 In. Phillips Pan Hd, View Part Info	$0.00	Not Available
12	STD610810 - Screw, #8-18 X 1, Phillips Pan Head, Typ View Part Info	$0.00	Not Available
17	STD601005 - Screw-pan Hd. Ty. \t\" 10-32 X 1/2. " View Part Info	$0.00	Not Available
21	ESKDP13789 - Nut. View Part Info	$0.00	Not Available
24	STD610603 - Screw 8 Pack View Part Info	$0.00	Not Available
30	STD541408 - Nut-lock 8-32 , 8 Pack View Part Info	$10.99
31	STD551008 - Washer, Flat. View Part Info	$0.00	Not Available
36	ESK19618 - Washer View Part Info	$7.50
37	ESK803144-2 - Push Nut View Part Info		Not Available
41	ESK13610 - Nut (for #8 Sheet Metal Screw). Please E View Part Info	$0.00	Not Available

Hoses, Valves, and Regulators

Ref.	Image	Part No & Description	Price
23		ESK13617 - Float Assembly. No Longer Available. View Part Info		Not Available

Knobs

Ref.	Image	Part No & Description	Price
1		ESK25251 - Knob . View Part Info	$0.00	Not Available

Motors and Blades

Ref.	Part No & Description	Price
33	ESK28886-01 - Venturi (nla When Gone) View Part Info	$13.59
38	ESK816133 - Clamp View Part Info		Not Available
39	ESK29452 - Blade View Part Info		Not Available
40	ESK27747 - Motor. No Longer Available. View Part Info		Not Available

Other Parts

Ref.	Part No & Description	Price
3	ESK31764 - Nameplate. View Part Info	$0.00	Not Available
5	ESK27942 - Bracket, Switch. View Part Info	$0.00	Not Available
9	ESK13985 - Bearing No Longer Available View Part Info		Not Available
13	ESK31812 - Lid. Sorry Thispart Is No Longer Availab View Part Info	$0.00	Not Available
14	ESK31813 - Housing. View Part Info	$0.00	Not Available
15	ESK13968 - Plug View Part Info		Not Available
18	ESK25262 - Roller, Bottom. Sorry This Part Is No Lo View Part Info	$0.00	Not Available
22	ESK25227 - Switch. No Longer Available. View Part Info		Not Available
25	ESKV24316 - Bracket View Part Info		Not Available
26	ESK18693-02 - Bearing (nla When Gone) View Part Info	$0.00	Not Available
27	ESK24353 - Pulley View Part Info		Not Available
29	ESK24352 - Pulley. Sorry This Part Is No Longer Ava View Part Info	$0.00	Not Available
32	V27217 - Grommet. View Part Info	$0.00	Not Available
34	ESK27219 - Spacer. View Part Info	$0.00	Not Available
35	ESK27627 - Shaft. No Longer Available. View Part Info		Not Available
43	ESK29537 - Relief, Strain. View Part Info	$0.00	Not Available
44	ESK22079 - Cord Kit. View Part Info	$0.00	Not Available

Panels

Ref.	Image	Part No & Description	Price
11		ESK816947 - Grill View Part Info	$0.00	Not Available

Tubing

Ref.	Image	Part No & Description	Price
42		ESK17417 - Clamp. View Part Info	$0.00	Not Available

Water Tanks

Ref.	Image	Part No & Description	Price
16		ESK822120 - Caster Twin Wheel View Part Info		Not Available
