Kenmore 758.74093

60 Parts Available for this Model

Appliance Factory Parts had all the grill parts I needed in stock at a reasonable price and delivered quickly. Thank you for making my grill repair easy

Apr 10, 2024

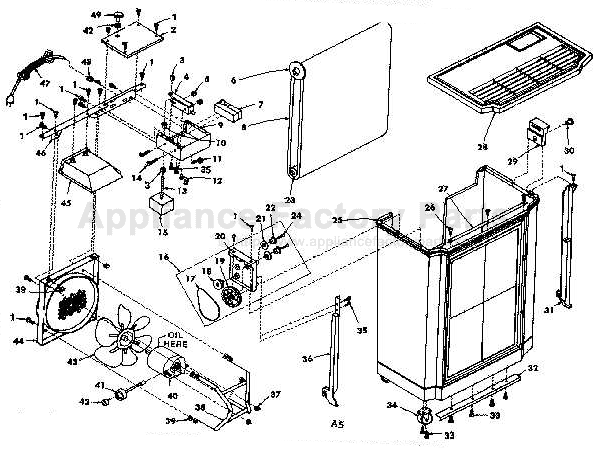

[Click Images to Enlarge]

Part Categories for Kenmore 758.74093

Accessories for All Humidifiers

Accessories | Chemicals | Tubing

All Parts for Kenmore 758.74093

Controls

Ref.	Image	Part No & Description	Price
7		ESK13805-02 - Humidistat View Part Info		Not Available

Drive Belts

Ref.	Image	Part No & Description	Price
17		25243 - Drive Belt For Sears View Part Info	$18.45

Filters

Ref.	Image	Part No & Description	Price
		ESKHDP1 - Humidifier Pad Foam View Part Info	$43.96

Hardware

Ref.	Part No & Description	Price
1	STD610805 - Screw 8 Pack View Part Info		Not Available
5	STD541006 - Hex Nut, 8-pack View Part Info		Not Available
14	STD510610 - Screw, #6-32 X 1 Phil Pan Hd Mach. View Part Info	$0.00	Not Available
24	STD610603 - Screw 8 Pack View Part Info	$0.00	Not Available
26	STD600603 - Screw #6-32x3/8 Phil Pan Hd Type-d. View Part Info	$0.00	Not Available
33	STD601005 - Screw-pan Hd. Ty. \t\" 10-32 X 1/2. " View Part Info	$0.00	Not Available
35	STD600803 - Screw 8 Pack View Part Info	$0.00	Not Available
37	STD541408 - Nut-lock 8-32 , 8 Pack View Part Info	$10.99
39	ESK13610 - Nut (for #8 Sheet Metal Screw). Please E View Part Info	$0.00	Not Available
42	ESK19618 - Washer View Part Info	$7.50

Hoses, Valves, and Regulators

Ref.	Image	Part No & Description	Price
13		ESK19447 - Chain View Part Info		Not Available

Knobs

Ref.	Image	Part No & Description	Price
49		ESK24194 - Knob. View Part Info	$0.00	Not Available

Motors and Blades

Ref.	Image	Part No & Description	Price
40		ESK24546 - Motor. Sorry This Part Is No Longer Avai View Part Info	$0.00	Not Available
43		ESK14031-14 - Blade, Fan. Sorry This Part Is No Longer View Part Info	$0.00	Not Available

Other Parts

Ref.	Part No & Description	Price
	4810AR4155B - Bracket View Part Info	$5.18
2	ESK25339 - Nameplate. View Part Info	$0.00	Not Available
3	ESK26181 - Sleeve View Part Info	$4.50
4	ESK19415 - Switch View Part Info		Not Available
9	ESK20609-01 - Box, Switch. View Part Info	$0.00	Not Available
10	ESK14153 - Bushing View Part Info	$4.50
11	ESKDP14075 - Bushing. View Part Info	$0.00	Not Available
15	ESK19861 - Float. View Part Info	$0.00	Not Available
16	ESK24674 - Box Assembly, Drive. No Longer Available View Part Info		Not Available
18	ESK24353 - Pulley View Part Info		Not Available
19	ESK24352 - Pulley. Sorry This Part Is No Longer Ava View Part Info	$0.00	Not Available
20	ESK24771 - Box, Drive. Sorry This Part Is No Longer View Part Info	$0.00	Not Available
21	ESK18693-02 - Bearing (nla When Gone) View Part Info	$0.00	Not Available
22	ESKV24316 - Bracket View Part Info		Not Available
23	ESK25262 - Roller, Bottom. Sorry This Part Is No Lo View Part Info	$0.00	Not Available
25	ESK22387 - Housing. View Part Info	$0.00	Not Available
27	ESK19084-01 - Brace. View Part Info	$0.00	Not Available
28	ESK21936-01 - Lid. Sorry This Part Is No Longer Availa View Part Info	$0.00	Not Available
29	ESK19249 - Bracket, Bearing. Sorry This Part Is No View Part Info	$0.00	Not Available
30	ESK13852 - Roller Bearing. Sorry This Part Is No Lo View Part Info	$0.00	Not Available
31	ESK25256-01 - Channel. View Part Info	$0.00	Not Available
32	ESK19904 - Brace, Bottom. View Part Info	$0.00	Not Available
36	ESK25257-01 - Channel. View Part Info	$0.00	Not Available
38	ESK24312-01 - Support. View Part Info	$0.00	Not Available
41	ESK24318 - Shaft.sorry This Part Is No Longer Avail View Part Info	$0.00	Not Available
45	ESK21074 - Shield. Sorry This Part Is No Longer Ava View Part Info	$0.00	Not Available
46	ESK19037-01 - Support. View Part Info	$0.00	Not Available
47	ESK22079 - Cord Kit. View Part Info	$0.00	Not Available
48	ESK13802 - Bushing. View Part Info	$0.00	Not Available

Panels

Ref.	Image	Part No & Description	Price
44		ESK19029 - Grill. View Part Info	$0.00	Not Available

Tubing

Ref.	Image	Part No & Description	Price
12		ESK17417 - Clamp. View Part Info	$0.00	Not Available

Water Tanks

Ref.	Image	Part No & Description	Price
34		ESK822120 - Caster Twin Wheel View Part Info		Not Available

Accessories for all Humidifiers:

Ref.	Image	Part No & Description	Price
		AC-912 - Pan Tabets ( 6 Pack) View Part Info	$13.65
		246 - Humidifier Treatment View Part Info	$15.65

Chemicals for all Humidifiers:

Ref.	Image	Part No & Description	Price
		FSRM6 - Humidafresh Rainforest Mist Water Treatm View Part Info	$11.03
		FSCA6 - Humidafresh Cinnamon Apple Water Treatme View Part Info	$11.15
		FSFV6 - Humidafresh Vanilla Water Treatment View Part Info	$11.03
		AC802 - Humidifier Bacteriostatic Water Treatmen View Part Info	$11.28
		1T-6 - Humdf Water Treatment32 Oz View Part Info	$11.80
		AC816 - Extra Strength Humidifier Cleaner View Part Info	$11.22
		FSOB6 - Humidafresh Ocean Breeze View Part Info	$11.53
		3US-6 - Water Treatment Cleaner View Part Info	$11.22

Tubing for all Humidifiers:

Ref.	Image	Part No & Description	Price
		21581001 - Worm Gear Clamp, 5 5/8 - 6 1/2 View Part Info	$1.99
