Kenmore 93100

50 Parts Available for this Model

Super fast delivery! Very easy to order from and amazing communication. Excellent! I will certainly come back here again!

Mar 26, 2022

[Click Images to Enlarge]

Part Categories for Kenmore 93100

Controls | Filters | Gaskets | Hardware | Hoses, Valves, and Regulators | Knobs | Motors and Blades | Other Parts | Tubing | Wheels and Casters | Windows

Accessories for All Humidifiers

Accessories | Chemicals | Tubing

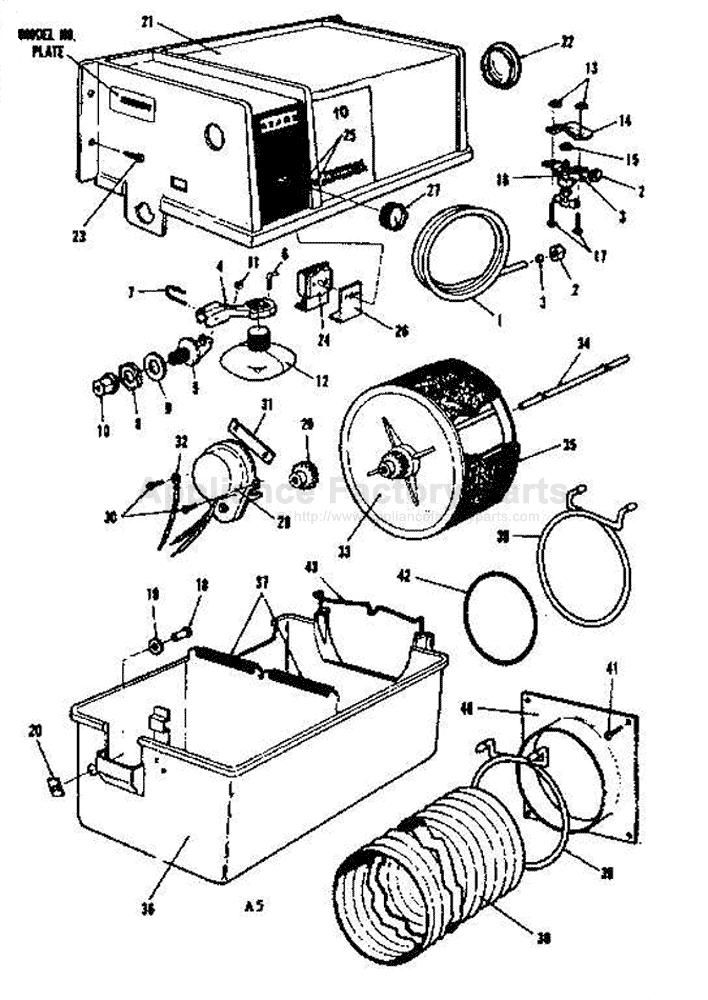

All Parts for Kenmore 93100

Controls

Ref.	Image	Part No & Description	Price
24		35-5484-01 - On-off Switch . This Part Is No Longer A View Part Info	$0.00	Not Available
26		281-149-01 - Switch Guard . View Part Info	$0.00	Not Available
32		280-990-01 - Ground Wire . View Part Info	$0.00	Not Available

Filters

Ref.	Image	Part No & Description	Price
35		LS71 - Foam Humidifier Filter 35569102 View Part Info	$6.52

Gaskets

Ref.	Image	Part No & Description	Price
37		281183-02 - Gasket/long . View Part Info	$0.00	Not Available

Hardware

Ref.	Image	Part No & Description	Price
2		STD575025 - Brass Compression Nut 1/4 In.. View Part Info	$0.00	Not Available
3		STD575026 - Brass Compression Sleeve 1/4 In.. View Part Info	$0.00	Not Available
6		21-5307-01 - Locking Pin. This Part Is No Longer Avai View Part Info	$0.00	Not Available
9		030014-77 - Washer . View Part Info	$0.00	Not Available
13		STD541025 - Hex Nut, 8-pack View Part Info	$2.16
15		21-5034-01 - Pilot Washer . View Part Info	$0.00	Not Available
17		STD522512 - Hex Bolt, 5-pack View Part Info	$2.16
19		030228-13 - Washer . View Part Info	$0.00	Not Available
23		STD522505 - Hex Bolt, 8-pack View Part Info	$2.16
30		STD510603 - Screw 8 Pack View Part Info	$0.00	Not Available
31		255-163-01 - Speed Nut . View Part Info	$0.00	Not Available
41		STD610802 - Screw . View Part Info	$0.00	Not Available

Hoses, Valves, and Regulators

Ref.	Image	Part No & Description	Price
		28110101 - Float Button View Part Info		Not Available
		STV3 - Saddle Valve, 1/4" Self Tapping Valve View Part Info	$4.52
12		23099 - Float Assembly With 1/4 Inch Threaded Od View Part Info	$37.54
38		281152-01 - Flex Hose . View Part Info	$0.00	Not Available
40		225142-01 - Tubing Flange. View Part Info	$0.00	Not Available

Knobs

Ref.	Image	Part No & Description	Price
27		281-141-01 - Switch Knob . View Part Info	$0.00	Not Available

Motors and Blades

Ref.	Image	Part No & Description	Price
28		35-5478-01 - Media Motor Asm. Inc. 29-32 . View Part Info	$0.00	Not Available

Other Parts

Ref.	Image	Part No & Description	Price
		35-5288-01 - Overflow Kit . View Part Info	$0.00	Not Available
7		28110201 - Pivot Pin . Sorry This Part Is No Longer View Part Info	$0.00	Not Available
10		25514001 - Plastic Compresson Nut View Part Info	$2.99
18		280855-01 - Eyelet . View Part Info	$0.00	Not Available
20		281186-01 - Clip . View Part Info	$0.00	Not Available
21		35-5476-02 - Upper Case Asm. Inc 22 . View Part Info	$0.00	Not Available
29		35-5497-01 - Gear . View Part Info	$0.00	Not Available
36		35-5487-02 - Lower Case Asm. Inc. 37 . View Part Info	$0.00	Not Available
42		281155-01 - Rubber O-ring. View Part Info	$0.00	Not Available
43		281279-01 - Bracket. View Part Info	$0.00	Not Available

Tubing

Ref.	Image	Part No & Description	Price
1		STD516170 - Copper Tubing Incl Keys 21 22. View Part Info	$0.00	Not Available
39		21581001 - Worm Gear Clamp, 5 5/8 - 6 1/2 View Part Info	$1.99

Wheels and Casters

Ref.	Image	Part No & Description	Price
33		355480-01 - Media Wheel. View Part Info	$0.00	Not Available
34		215309-01 - Media Wheel Shaft . View Part Info	$0.00	Not Available

Windows

Ref.	Image	Part No & Description	Price
22		225137-01 - Inspection Window. View Part Info	$0.00	Not Available

Accessories for all Humidifiers:

Accessories for all Humidifiers:

Ref.	Image	Part No & Description	Price
		AC-912 - Pan Tabets ( 6 Pack) View Part Info	$13.65
		246 - Humidifier Treatment View Part Info	$15.65

Chemicals for all Humidifiers:

Ref.	Image	Part No & Description	Price
		FSRM6 - Humidafresh Rainforest Mist Water Treatm View Part Info	$11.03
		FSCA6 - Humidafresh Cinnamon Apple Water Treatme View Part Info	$11.15
		FSFV6 - Humidafresh Vanilla Water Treatment View Part Info	$11.03
		AC802 - Humidifier Bacteriostatic Water Treatmen View Part Info	$11.28
		1T-6 - Humdf Water Treatment32 Oz View Part Info	$11.80
		AC816 - Extra Strength Humidifier Cleaner View Part Info	$11.22
		FSOB6 - Humidafresh Ocean Breeze View Part Info	$11.53
		3US-6 - Water Treatment Cleaner View Part Info	$11.22

Tubing for all Humidifiers:

Ref.	Image	Part No & Description	Price
		21581001 - Worm Gear Clamp, 5 5/8 - 6 1/2 View Part Info	$1.99
